Discovery Project:
Big Muff PI Pedal

Project Description

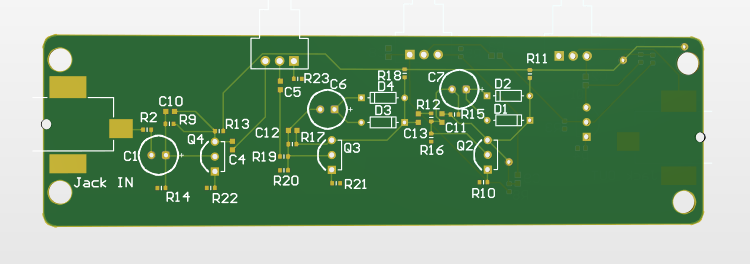

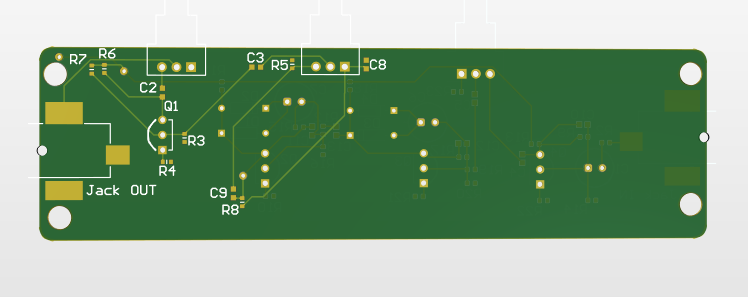

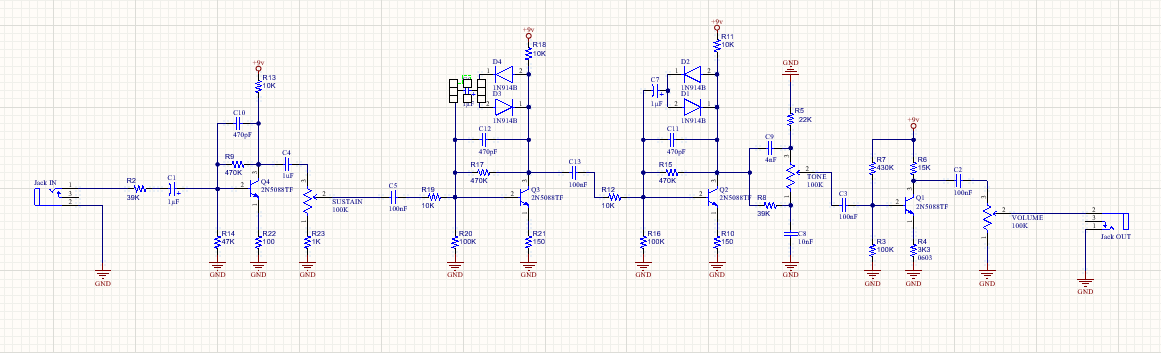

For my ECE 1100 discovery project, I designed a PCB and schematic for a Big Muff Pi circuit based on technical analysis of reference designs. The project involved creating a matched mechanical enclosure in Fusion 360 to validate component fitment and board dimensions. This exercise combined analog circuit design and mechanical modeling to generate a complete design package ready for manufacturing.
